Castoldi 19

LOA0.0m
Beam0.00m
Top Speed0kn
Guests0
Fuel0L
EnginesVolvo Penta D3-170 or D3-220
Propulsionjet
Hullcomposite
ClassCE-C

About this tender

Castoldi 19 - what we know.

The JT 19 is the size in Castoldi's range that most owners on motoryachts in the 50m to 60m bracket end up specifying. At 5.98m LOA and 2.44m beam, the boat carries ten guests at coastal certification, fits the standard tender envelope on the larger end of mid-size motoryachts, and offers a choice between the Volvo Penta D3-170 standard engine or the upgraded D3-220 for owners who want the extra performance margin.

Like the JT 18, the 19 uses the Volvo Penta D3 series rather than the Yanmar engines on the smaller models in the range. The 220 hp D3-220 option is the upgrade we recommend for owners whose programme involves long shore runs in chop or carrying full guest loads regularly. Same Italian factory build standard, same Kevlar and vinylester laminate construction, same Castoldi waterjet integration.

Highlights

Built for the work.

The four details we'd point out first to a captain who hasn't seen one on the water yet.

01

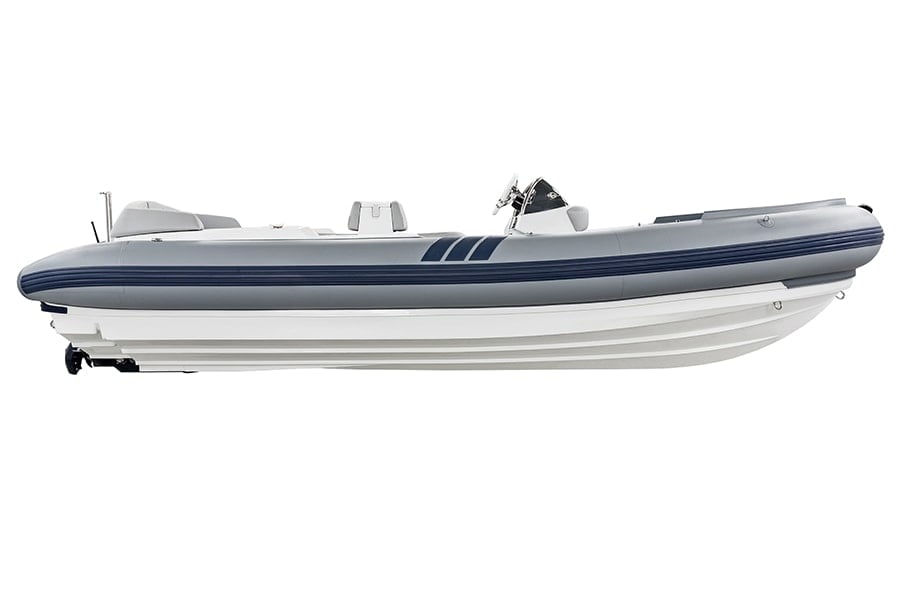

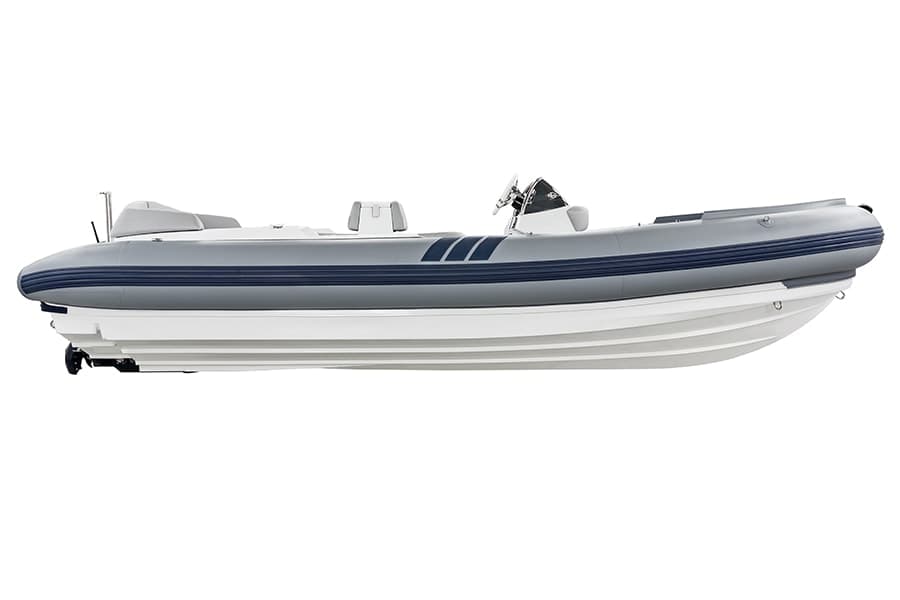

D3-170 or D3-220 engine choice

Castoldi offers the JT 19 with either the Volvo Penta D3-170 (170 mhp) or the D3-220 (220 mhp). The 220 hp upgrade is the right specification for owners who want a clear performance margin under load or who plan regular long shore runs. The D3-170 is the economy choice and remains a credible option for primarily light-load tender duty.

02

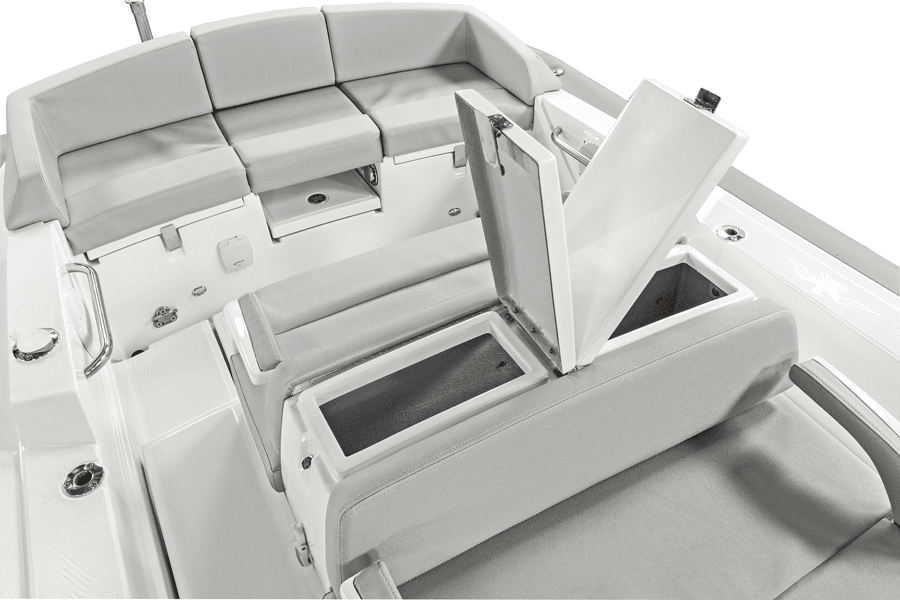

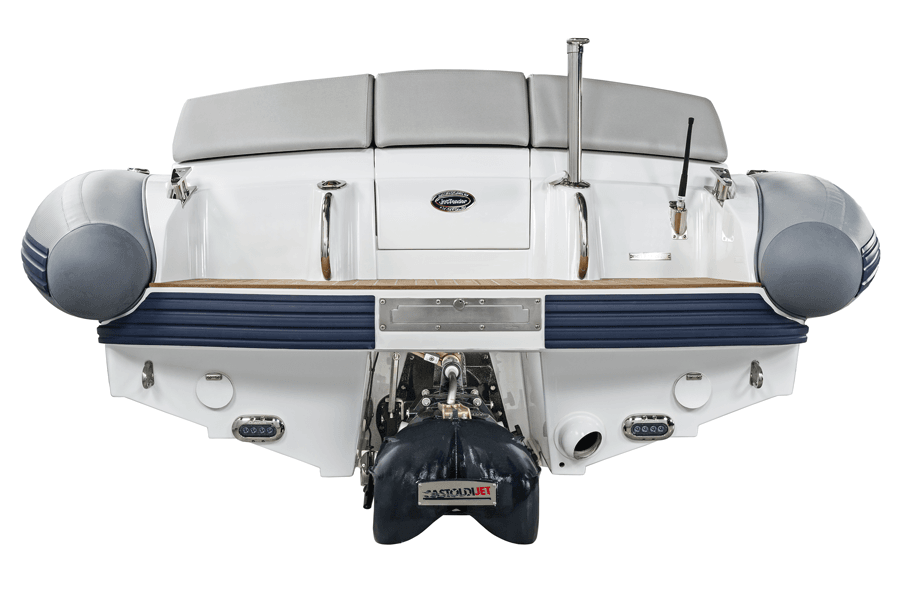

Ten-guest practical capacity

Cat C certification supports ten passengers, and the deck layout genuinely works for the count. This is the size step where Castoldi's tender range starts to support larger group day shuttles without compromise. For guest groups beyond ten, look at the JT 21 or JT 25; for smaller groups the JT 18 is more economical.

03

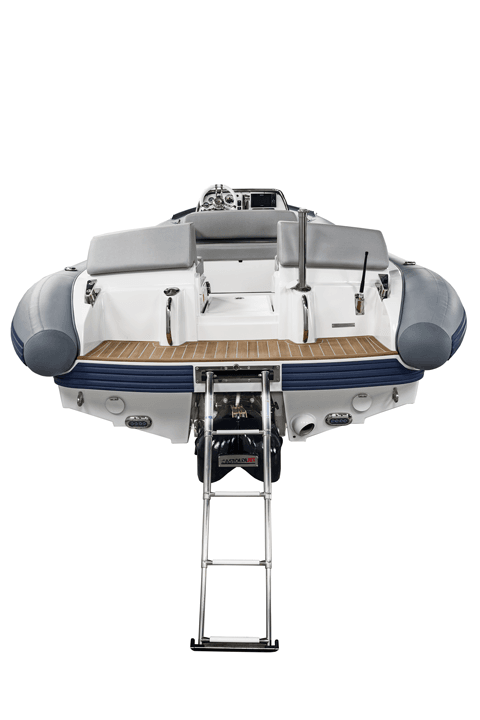

Standard 50m to 60m yacht fit

5.98m LOA and 2.44m beam matches the standard tender envelope for motoryachts in the 50m to 60m range. For owners stepping up tender size on a refit or new build, the JT 19 is often the right answer. Confirm against the lift specification and rigging point geometry on a per-yacht basis.

04

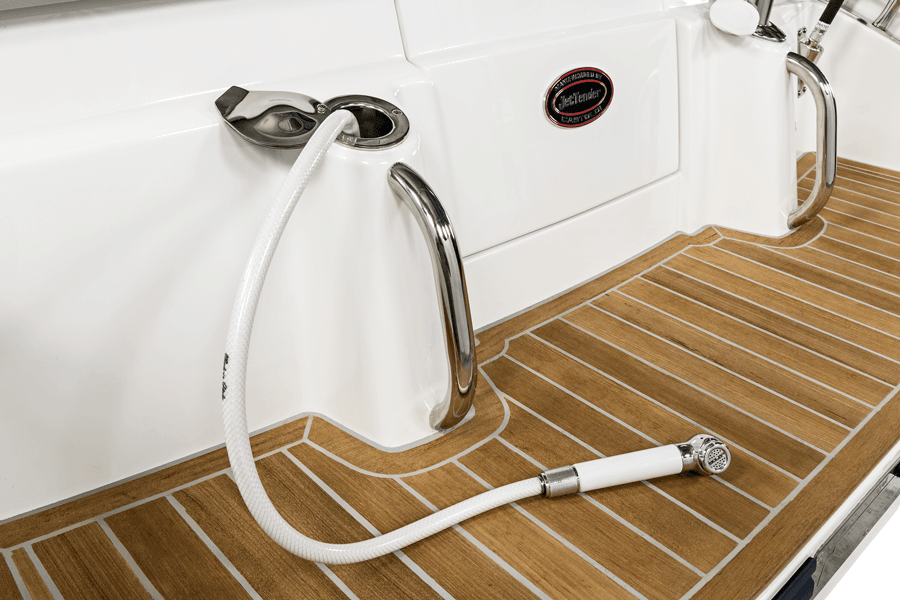

Italian factory consistency

Built to the same standard as the rest of the Castoldi range. Kevlar and vinylester fire-retardant laminate, sandwich-construction deck, factory-built waterjet, and finish quality at the top of the production tender market. Insurance and class society acceptance is straightforward.

The full specification

Every number, sorted.

Dimensions

Length overall
5.98m
Beam
2.44m
Dry weight
1,200kg
Year
2024

Performance

Top speed
36kn

Power and Tanks

Engines
Volvo Penta D3-170 or D3-220
Power
220hp ea.
Propulsion
jet
Fuel capacity
112L

Construction

Hull
composite
Classification
CE-C

Hull and Dimensions

Tube
Hypalon Neoprene

Propulsion

Optional engine
Volvo Penta D3-220, 220 mhp at 4,000 rpm

Specifications, prices, availability, and performance figures are supplied for guidance only and remain subject to confirmation by the yard, seller, broker, survey, contract, and final specification.

Questions, answered

Before you enquire.

D3-170 or D3-220?
For owners who plan regular full-load shore runs or want the performance margin in chop, the D3-220 is worth the upgrade. For programmes where the tender mostly shuttles a small crew with light guest loads, the D3-170 saves the cost and remains a credible choice. Both engines share the same parts and service network.
JT 19 or JT 21?
The 21 is meaningfully larger at 6.30m LOA and 2.60m beam, with a 250 hp Yanmar engine and twelve-passenger capacity. For owners on yachts at 60m and above the 21 is often the right answer; for owners in the 50m to 60m range where the 19 fits the lift envelope without modification, the 19 is the practical choice.
Is there a SOLAS variant?
Yes. The JT 19 RB is the SOLAS-rated rescue boat version, MED type-approved and equipped with the Castoldi RI.SE.R. self-righting system. For yachts above 500 GT under LY3 rules, the 19 RB is the appropriate compliance answer.
What is the practical operating range?
Diesel waterjet drivelines are meaningfully more economical than equivalent petrol outboards at coastal cruise. The boat is sized for half-day to full-day shore-run programmes without refuelling, with the mothership's bunkering covering longer cruising windows. Specific tank size varies by configuration.

The yard

Castoldi

Albairate, Italy

Castoldi is an Italian manufacturer headquartered in Albairate, in the Milan metropolitan area of Lombardy. The company has been developing waterjet propulsion since the early 1960s, with the first mass-produced Castoldi waterjet unit presented at the Genoa Boat Show in 1969. Today more than 40,000 Castoldi hydrojet units operate worldwide, across civilian, military, and commercial fleets.

The range we ask Castoldi for runs from compact garage-fit tenders at 4.3m right through to the flagship Jet Tender 34 at 10.5m - sixteen passengers, twin 440 hp diesels paired to twin Turbodrive waterjet units, and a certified top speed of 50 knots. Every model in between follows the same build logic: deep-V hulls hand-laid in Kevlar and vinylester resin, Castoldi's own Turbodrive waterjet drives manufactured in-house, and a package of practical details - retractable helms, self-bailing cockpits, and walkthrough deck layouts - that captains value on a working programme.

The propeller-free drivetrain is the defining feature of any Castoldi. No exposed rotating parts below the keel means safe operation around swimmers and watersport guests; zero draft restriction means beach landings and sand-bank crossings that a conventional-drive tender cannot attempt. SOLAS-certified rescue versions (JT 14 RB, JT 18 RB, JT 19 RB) sit alongside the standard tender line, so owners running a dual-purpose programme can specify a single platform. We'd put the mid-range JT 21 through JT 28 models alongside the main European jet-tender alternatives: the build quality is consistent, the proprietary waterjet technology is genuinely in-house, and the range breadth covers most mothership garage sizes without compromise.

Last call · Available

Enquire about the 19.

Castoldi · Albairate, Italy

Indicative price fromPrices on request
LOA
6.0m
Beam
2.44m
Top Speed
36kn
Guests
10

Tell us about your yacht, your programme, and the missions 19 needs to handle. We come back within 48 hours with a written assessment - fit for the brief, lead time, and trade-offs against alternatives in the same band.
